Observing occultation's

With standard software(1):

It is possible to observe occultation's of stars by asteroids or by the moon, using a standard program like CCDOPS, shutting of the telescope drive, and letting the star move over the CCD.( an other kind of an drift scan image, you will get trails )
see: Asteroid (150) NUWA occults a star Report by Bob Elliott

With WinScan or SCAN (2):

It is also possible to let the telescope track the star and read out line after line using WinScan or SCAN( you will also get trails). Then you can adapt the readout speed to the brightness of the star. You can read out very long trails, so you do not need to know the exact time of the occultation.

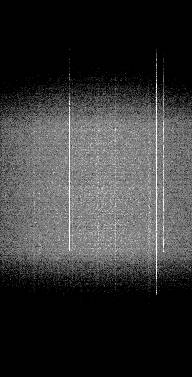

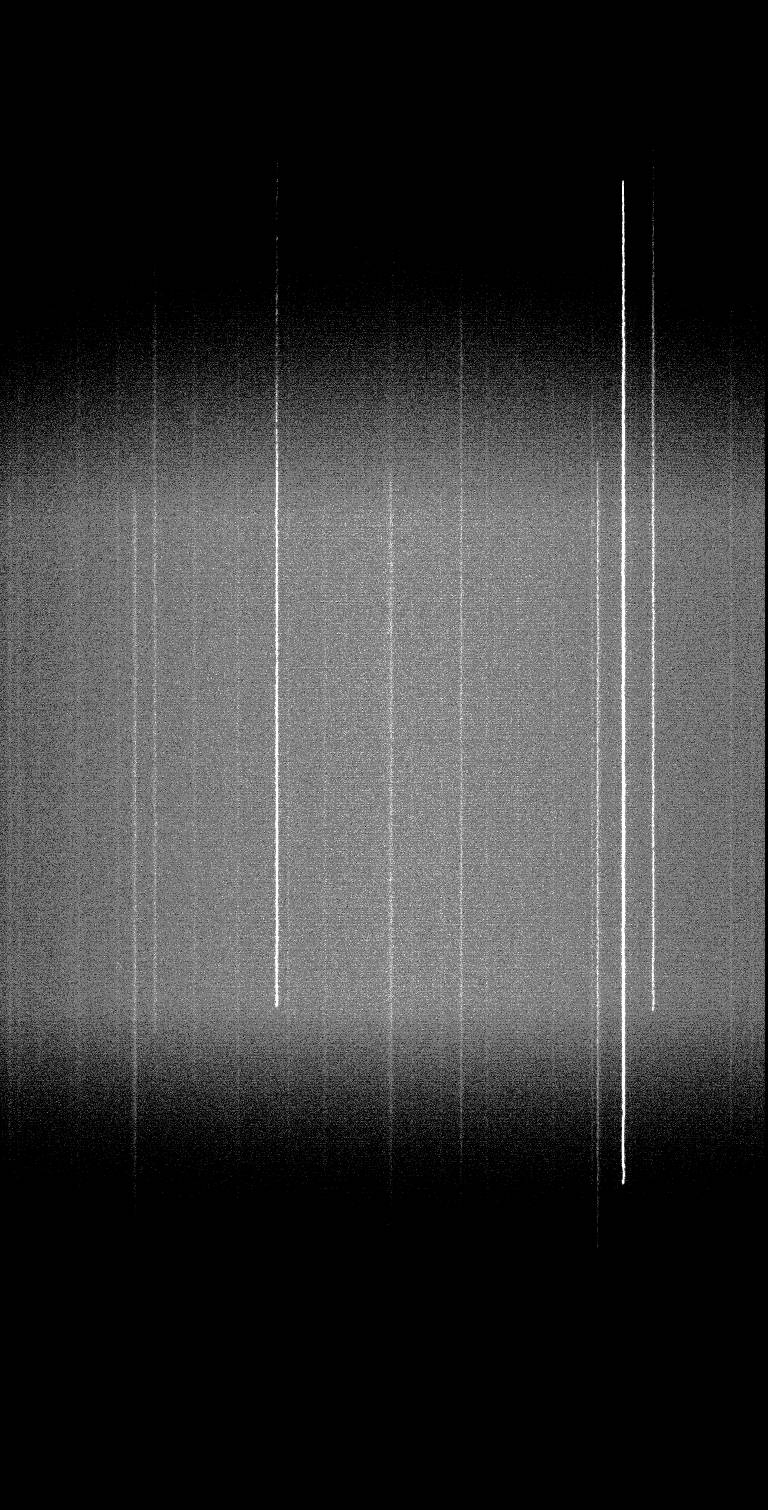

An test image image taken in the east of alpha orionis. In this image no star is occulted. Orientation of the image:
----W
-N-----S
----E
(In this case, every orientation may be chosen)
The rest of the lines of the CCD are read in, with closed shutter. (ramping at the begin and the end of the image) Because of the ramping background and range have to be adapted to find the begin and the end of the trails. The readout speed was 0.050000 seconds per line. The bright trail in the left of the image is caused by GSC 129 309 mag 8.87 . Form the readout speed and the time of the begin of the image and the distance from the begin of the trail to the begin of a occultation the time of the begin of the occultation and the duration of the occultation can be calculated. The time of the begin of the image is stored in the file header. If a fast readout speed is needed, it can be used the planetary mode or the tracking CCD. See: Details readout speed.
You may check for the highest possible readout speed before. (You may check the time stamp file) I found possible readout speeds with the ST-7 from 0.027 sec for 765 columns, for planetary mode with 100 columns 0.0095 sec, and with the tracking CCD at planetary mode 25 columns 0.002 sec. It can be also used binning.
Maybe there have to be made some more tests, before using this technique to observe occultation's.
See also:
Iris software - Audine drift-scan techniques
This technique may be also used for observing variable stars with a short time resolution. It can be also elevated the size and frequency of the seeing.

It may be also possible to measure stellar diameters by observing lunar occultation's using TDI techniques. ( It should be used the tracking CCD in the planetary mode on a high read out speed)
see:
  Observing Lunar Occultation's with CCD´s by drift-scan imaging Joan Genebriera
     CCD drift-scan imaging lunar occultation's Octavi Fors
Laszlo Sturmann, Lunar Occultations, Drift Scanning
